Hyperion Ceiling System
Engineered for Performance. Designed for Certainty. The DPI Hyperion Ceiling System sets a new benchmark in structural ceiling solutions for data centres, AI facilities, clean rooms, and industrial environments.
Designed and manufactured by DPI, this pre-engineered aluminium grid system delivers exceptional strength, adaptability, and ease of installation, all while supporting the most demanding infrastructure requirements.
Why Choose the Hyperion Ceiling System?
High Load Capacity
Engineered to support critical infrastructure, the Hyperion system offers:
- Point Load Capacity: up to 6kN
- Uniform Load Capacity: up to 8kN/m²
- Independently tested and certified with a safety factor of 2
Modular & Prefabricated Design

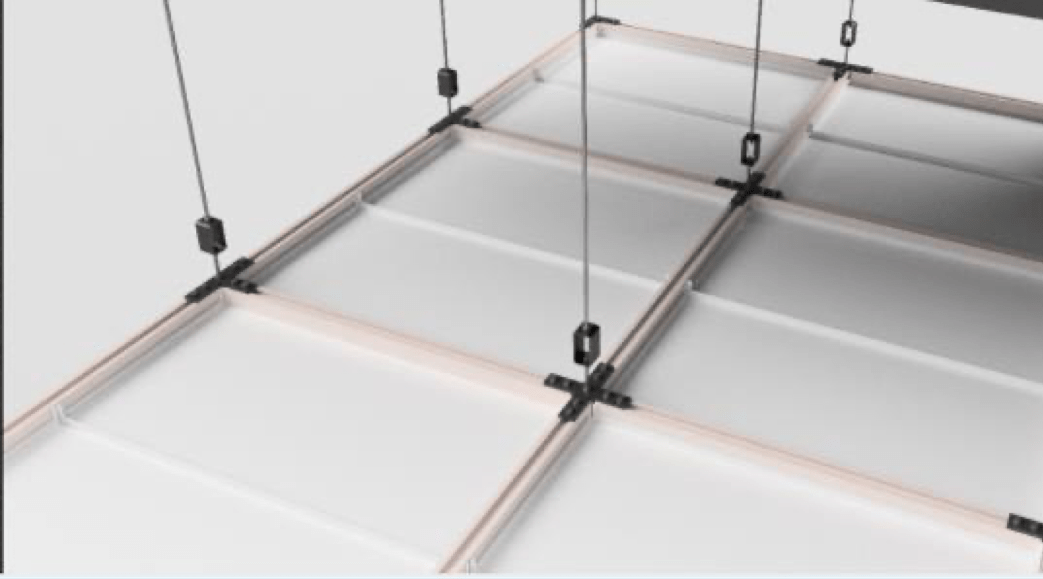

Featuring a double-channel aluminium grid with robust S-355 steel connectors, the system ensures fast, consistent installation with high tolerance control.
Service-Friendly Grid Layout
With 1200 × 1200 mm centres and 1129.6 × 1129.6 mm clear openings, the system allows easy access for MEWP and maintenance operations.
Manufactured in the UK & UAE
Built in ISO-9001 accredited facilities, ensuring repeatable quality and reliable delivery.
Versatile Applications
Ideal for:
- Structural & System Support
- Power and pipework module support
- Mechanical system support
- Luminaire support
- Cage support and hot/cold aisle containment interfacing
- Containment & Distribution Systems
- High load power distribution systems, including busbar and submain containment systems
- High load structured cabling and ELV containment systems
- Hot air return plenum/separation from conditioned environment
- Finishing & Accessories
- Second fix items and accessories
- High quality finishes for AI/HPC infrastructure and clean room environments
- High gloss 9016 white finishes (client spec dependent), improving reflectance values and reducing luminaire quantities

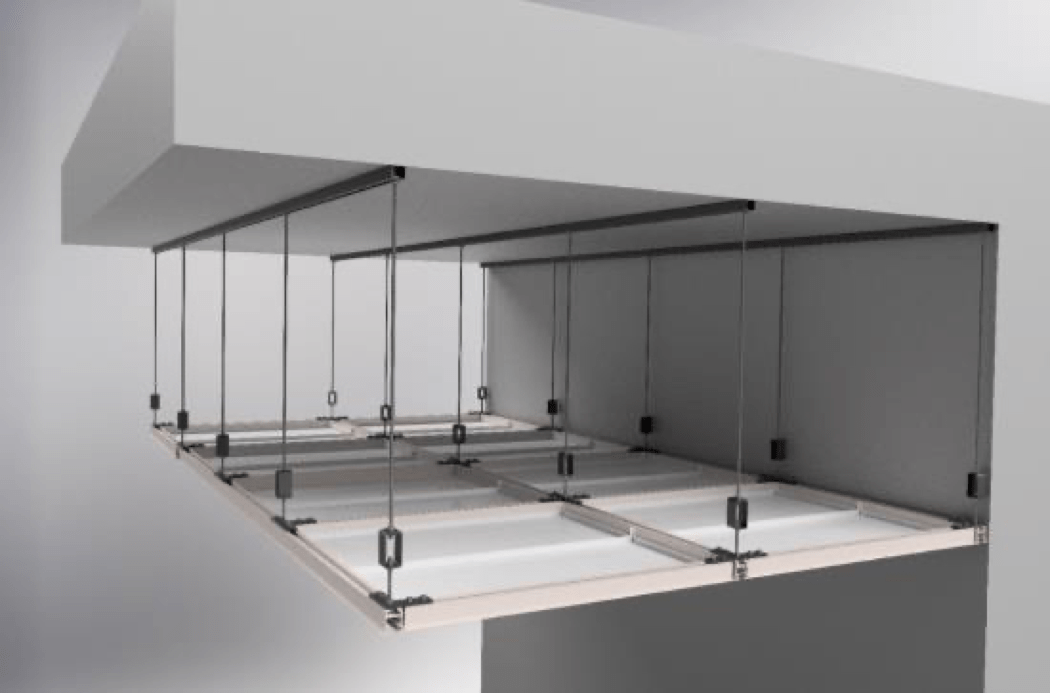

Installation Flexibility
Whether you need a floating or fixed perimeter installation, the Hyperion system adapts to your build requirements. With adjustable height configurations and compatibility with standard strut fixings, it’s designed for seamless integration into any facility.
Built for the Future of Infrastructure
From AI-driven data centres to precision-controlled clean rooms, the Hyperion Ceiling System is engineered to meet the evolving demands of modern infrastructure, delivering strength, scalability, and certainty where it matters most.
Technical Highlights
| Feature | Specification |
| Material | Extruded aluminium with channelled design |
| Grid Configuration | Primary & secondary modules with continuous channels |
| Grid Centres | 1200 × 1200 mm |
| Clear Tile Opening | 1129.6 × 1129.6 mm |
| Connector Type | S-355 steel |
| Fastener Compatibility | Standard strut fastening system |
| Surface Finish | Powder-coated |
| Hanging Method | Bespoke channelled extrusion |
Component Options
- Primary Grid Rails – Available in 1129mm and 3600mm lengths
- Connectors – L, T, and X types in S-355 steel
- Ceiling Tiles – Steel, 1mm thick, 1146.70mm × 573.80mm
- Fixings – M10 bolts, washers, channel nuts, and threaded rods
- Panel Clips – Secure ceiling panels with ease
